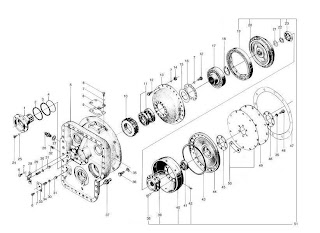

序号 编码 名称 数量 配件等级
1 4110000011081 导轮座YB315Z5-13A 1
2 4110000011082 密封环YB315Z5-33 1
3 4110000011083 密封环YB315Z5-12A 1
4 4110000011084 停用-弹性圈YB315Z5-25 1
5 4110000011085 壳体YB315Z5-08D 1
6 4110000011086 螺栓M8*16 01010-50816 8
7 4110000011087 垫圈801602-10825 4
8 4110000011088 垫板YB315Z5-06D 1
9 4110000011089 胶垫YB315Z5-07D 1
10 4110000011090 齿轮YB315Z5-11B 1
11 4021000076 滚动轴承GB276-6017 1
12 4110000011091 螺栓M8*35 01010-50835 38
13 4110000011092 泵轮YJSW315-6C-00002 1
14 4110000011093 停用-螺母M8 01580-10806 2
15 4110000011121 调整垫YB315Z5-35 1
16 4110000011094 压紧垫片YB315Z5-22A 1
17 4110000011095 导轮YJSW315-6C-00001 1
18 4015000208 挡圈GB894.1-85-65Mn 1
19 4110000011123 Ⅰ涡轮YJSW315-6C-10001 1
20 4110000011124 停用-Ⅱ涡轮组YJSW315-6C-11000 1
21 4110000011096 调整垫YB315Z5-30/31/32 1
22 4110000011125 挡圈52 YB315Z5.1-5 1
23 4021000155 轴承6013 1
24 4011000663 螺栓GB21-M10*25EpZn-8.8 1
25 4110000011097 垫圈10 01602-11030 2
26 4110000518008 管接头YB315Z5-14S 1
27 4110000011128 垫圈30 YB315Z5-09组合密封垫圈 2
28 4110000011100 阀盖YB315Z5-17A 1
29 4110000011101 弹簧YB315Z5-18A 1
30 4110000011102 调压垫YB315Z5-16.21 3
31 4110000011103 阀杆YB315Z5-26A 2
32 4110000011104 螺塞YB315Z5-15L① 1
33 4110000011105 压板YB315Z5-19A 1
34 4110000011106 弹簧YB315Z5-20 1
35 4110000011108 垫圈12 01602-11236 1
36 4110000011109 螺栓M12*45 01010-51245 1
37 4110000011129 管接头YB315Z5-24K 1
38 4019000063 铆钉GB869-8*15 1
39 4110000011131 Ⅰ涡轮毂YJSW315-6C-10001 1
40 4110000011132 涡轮罩YJSW315-6C-12001 1
41 4021000018 滚动轴承GB276-6210 1
42 4110000011134 停用-销YB315Z5.1-4A 8
43 4030000465 PO形圈GB3452.1-355*3.55 1
44 4110000011112 罩轮YB315Z5-02A 1
45 4110000011113 调整垫YB315Z5-34 1
46 4110000011116 圆垫板YB315Z5-04 1
47 4110000011118 衬垫YB315Z5-05 1
48 4110000011117 螺栓M12*30 01010-51230 6
49 4110000011115 弹性板YJSW315-20001 2
50 4110000011114 弹性板总成YJSW315-20000 1
51 4110000011111 涡轮组YJSW315-6C-10000 1
| ||||
