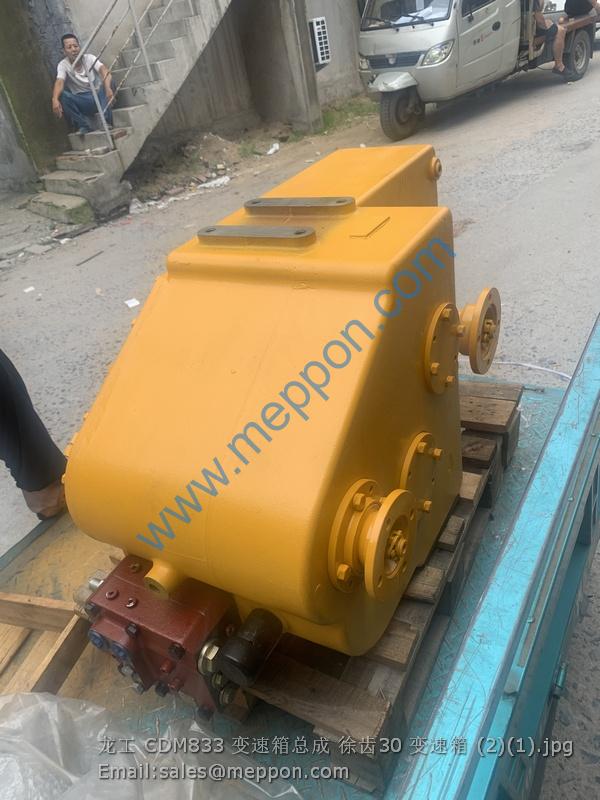

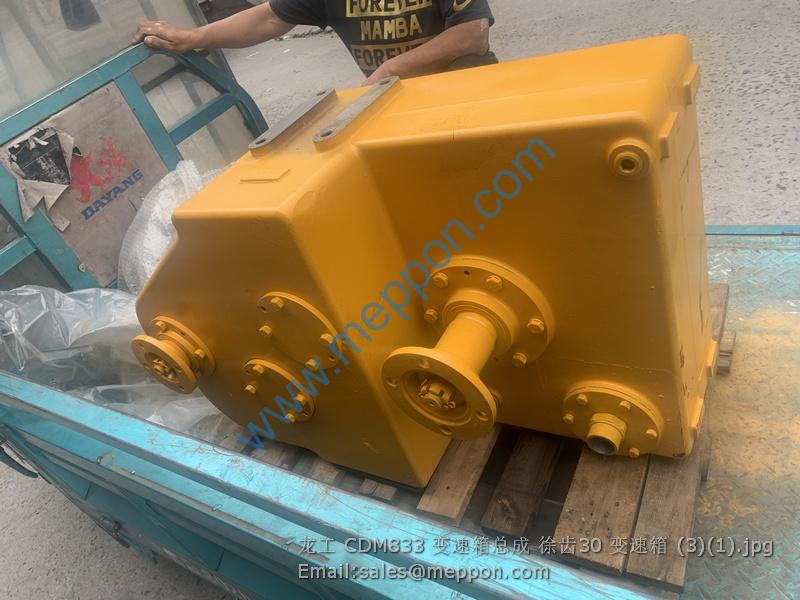

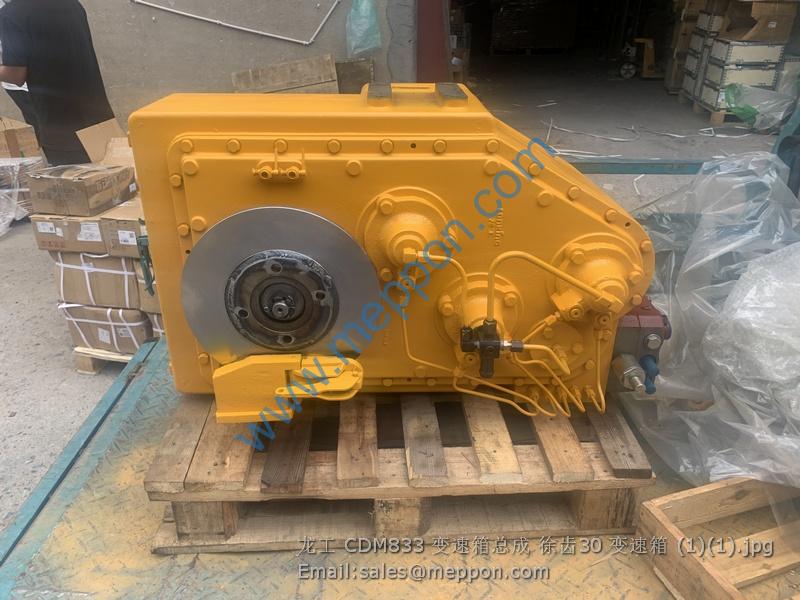

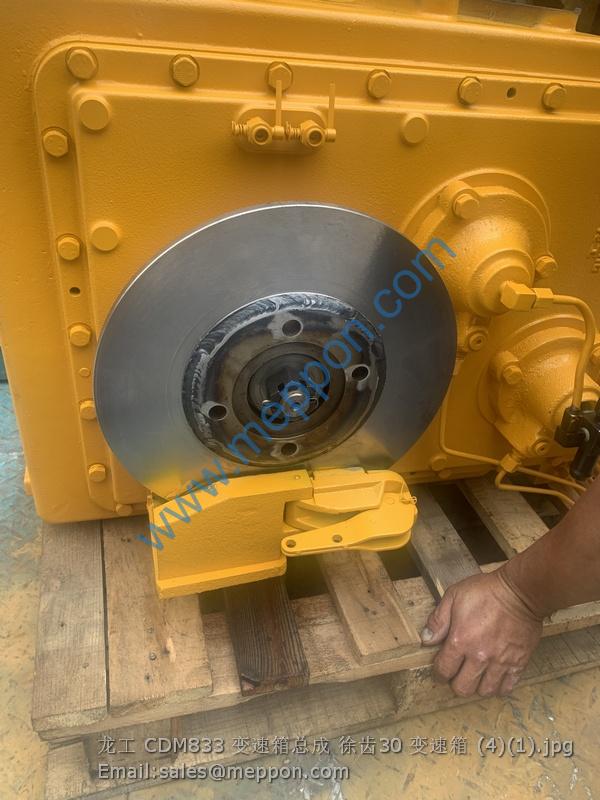

LONKING CDM833 CDM835 TRANSMISSION ASSY
1 36211000005 一轴润滑油管 First axle lubricating oil tube 1 ZL30E.5.18A
2 36223000006 倒挡润滑油管 Reverse gear lubricating oil tube 1 ZL30E.5.16A
3 36223000001 前进挡油管 Forward gear oil tube 1 ZL30E.5.11A
4 56953000101 接头体 A8/R1/4 Connector A8/R1/4 2 GB/T5626
5 36201000006S 三轴端盖总成 Third axle end cover assembly 1 ZL30E.5.5AS
6 36201100100 倒挡齿轮轴 Reverse gear axle 1 ZL30E.5-6
7 36201100094 密封垫 Seal gasket 1 ZL30E.5-26A
8 60201100495 密封垫 Seal gasket 1 ZL30E.5-10
9 36201000008S 二轴端盖总成 Second axle end cover assembly 1 ZL30E.5.9AS
10 36218100020 一轴端盖 First axle end cover 1 ZL30E.5.2-1
11 36201100101 密封垫 Seal gasket 2 ZL30E.5-8
12 60980000008 检油塞 Z1/4" Oil check plug 2 13050-010
13 36201100085 箱体 Transmission housing 1 ZL30E.5G-1
14 36201100096 密封垫 Seal gasket 1 ZL30E.5-3
15 36201000005S 三轴离合器总成 Third axle clutch assembly 1 ZL30E.5.4S
16 36201000004S 二轴离合器总成 Second axle clutch assembly 1 ZL30E.5.3S
17 36201000001S 一轴离合器总成 First axle clutch assembly 1 ZL30E.5.1S
18 56145011701 O 形圈 45×2.65 O-ring 45×2.65 1 GB/T3452.1
19 36201100084 轴套 Shaft sleeve 1 ZL30E.5-7
20 51204101214 螺栓 M10×30 Bolt M10×30 8.8 43 GB/T5783
21 36201100099 倒挡齿轮 Reverse gear 1 ZL30E.5-4
22 36201000007 支架 Bracket 2 ZL30E.5.6B
23 36201100085 箱体 Transmission housing 1 ZL30E.5G-1
24 60304000072 电控操纵阀 Electric control valve 1 ZL30E.5.8A
25 51142250108 螺钉 M16 Screw M16 1 GB/T825
26 51203112714 螺栓 M12×110 Bolt M12×110 8.8 6 GB/T5782
27 56139000202 油封 55×80×12 Oil seal 1 HG4-339-66
28 36224000001 透气阀总成 Vent trap 1 LG853.03.01.12
29 36201100078S 油封盖 Oil seal cover 1 ZL30E.5-28S
30 51401100107 垫圈 10 Washer 10 47 GB/T93
31 36201100095 输入法兰 Input flange 1 ZL30E.5-27
32 36201100097 橡胶垫 Rubber pad 1 ZL30E.5-30
33 36201100077 垫圈 Washer 1 ZL30E.5-25
34 60201100447 螺母 M24×1.5 Nut M24×1.5 1 JB980-80
35 36201100071S 端盖 End cover 2 ZL30E.5-17AS
36 36201100098 密封垫 Seal gasket 3 ZL30E.5-32
37 36201100079 调整垫圈 Adjusting washer 3 组 ZL30E.5-29
38 36201100093 后输出法兰 Rear input flange 1 ZL30E.5-24
39 51204111314 螺栓 M12×35 Bolt M12×35 8.8 29 GB/T5783
40 51401110107 垫圈 12 Washer 12 35 GB/T93
41 36201100076 后轴承端盖 Rear axle end cover 1 ZL30E.5-23
42 36201100091 密封垫 Seal gasket 2 ZL30E.5-15
43 36201100069 调整垫圈 Adjusting washer 1 组 ZL30E.5-13
44 56139000102 油封 60×85×12 Oil seal 1 HG4-339-66
45 36218000005 回油控制阀 Oil return control valve 1 ZL30E.5G.21
46 36218000004 滤清器总成 Filter assembly 1 ZL30E.5.7
47 52198025601 轴承 6312 Bearing 6312 2 GB/T276
48 51203131414 螺栓 M16×40 Bolt M16×40 8.8 8 GB/T5782
49 51401130107 垫圈 16 Washer 16 8 GB/T93
50 36100100011 螺塞 ZG3/4" Plug screw 1 LG853.02.01-011
51 56147010101 组合垫圈 10 Bonded washer 10 8 JB/T982
52 36201100082 接头体 Adapter 8 ZL30E.5-33
53 36221000004 加油管总成 Oil fill tube assembly 1 ZL30E.5.13
54 36201100083 轴套 Shaft sleeve 1 ZL30E.5-5
55 51453350107 挡圈 40 Retainer ring 40 1 GB/T894.1
56 51513131703 圆柱销 10×30 Cylindrical pin 10×30 2 GB/T119.1
57 52198025201 轴承 6308 Bearing 6308 1 GB/T276
58 51451580107 挡圈 90 Retaining ring 90 2 GB/T893.1
59 36201100092 输出轴 Output shaft 1 ZL30E.5-20A
60 36201100090 输出被动齿轮 Output driven gear 1 ZL30E.5-14A
61 36201100073 轴套 Shaft sleeve 1 ZL30E.5-19
62 36201100068 轴套 Shaft sleeve 1 ZL30E.5-12
63 56139000401 油封 65×90×12 Seal ring 2 HG4-339-66
64 51421110119 垫圈 12 Washer 12 1 GB/T97.1
65 36201100074 制动立支座 Brake bracket 1 ZL30E.5-21
66 36201100070 前轴承盖 Front bearing cover 1 ZL30E.5-16
67 60208000005 制动器 Brake 1 ZL1615.2A
68 36206000004 前输出法兰总成 Front output flange assembly 1 ZL30E.5B.17
69 36201100081 垫片 Shim 1 ZL30E.5-31
70 56145011301 O 形圈 42.5×5.3 O-ring 42.5×5.3 1 GB/T3452.1
71 36201100067 压板 Press plate 2 ZL30E.5-11
72 51373011001 螺母 M33×1.5 Bolt M33×1.5 2 GB/T890
73 36223000005 一挡油管 First gear oil tube 1 ZL30E.5.15A
74 36204000003 三档油管 Third gear oil tube 1 ZL30E.5.22A
75 36223000002 倒退挡油管 Reverse gear oil tube 1 ZL30E.5.12A
76 36223000003 二挡油管 Second gear oil tube 1 ZL30E.5.14A
77 56953000201 接头体 A10/R1/4 Connector A10/R1/4 3 GB/T5626
78 36201100072 接头 Connector 1 ZL30E.5-18
79 36213000006 三轴润滑油管 Third axle lubricating oil tube 1 ZL30E.5.19A
1 51451750107 挡圈 150 Retaining ring 150 2 GB/T893.1
2 36211100022 离合器活塞压板 Press plate of clutch piston 2 ZL30E.5.1-8
3 36211000023 离合器主动片 Clutch drive plate 12 ZL30E.5.1-12
4 36211100018 离合器被动片 Clutch driven plate 12 ZL30E.5.1-13
5 36211100021 密封环 Seal ring 3 ZL30E.5.1-7
6 52322000701 轴承 30308 Bearing 30308 2 GB/T297
7 36211100016 调整垫圈 Adjusting washer 1 ZL30E.5.1-10
8 36211100014S 轴套 Shaft sleeve 1 ZL30E.5.1-6S
9 52198021201 轴承 6209 Bearing 6209 4 GB/T276
10 51451560107 挡圈 85 Retainer ring 85 4 GB/T893.1
11 36211100012 轴套 Shaft sleeve 2 ZL30E.5.1-2
12 36211100020 一轴倒挡齿轮 Single-axis backward gear 1 ZL30E.5.1-5
13 51454410107 挡圈 52 Retainer ring 52 2 GB/T894.2
14 36211100013 压板 Press plate 2 ZL30E.5.1-3
15 36211100019 回位弹簧 Pull-off spring 2 ZL30E.5.1-4
16 36211000003 活塞装置 Piston device 2 ZL30E.5.1.1
17 60201100330 丝堵（1/8） Plug 2 ZL30E.5.1-9
18 36211000004 一轴离合器毂体 Hub body of single-axis clutch 1 ZL30E.5.1.2
19 36211100015 一轴前进挡齿轮 Single-axis forward gear 1 ZL30E.5.1-1
20 36211100011 轴套 Shaft sleeve 1 ZL30E.5.1-11
1 52322000701 轴承 30308 Bearing 30308 2 GB/T297
2 36212100039 垫圈 Washer 2 ZL30E.5.3-1
3 36212100040 二轴前进挡齿轮 Second axle forward gear 1 ZL30E.5.3-2
4 36212100041 垫圈 Washer 1 ZL30E.5.3-3
5 52198021201 轴承 6209 Bearing 6209 4 GB/T276
6 36212100043 二轴三挡齿轮 Second axle third gear 1 ZL30E.5.3-5B
7 51451560107 挡圈 85 Retaining ring 85 4 GB/T893.1
8 36212100042 轴套 Shaft sleeve 2 ZL30E.5.3-4
9 51451750107 挡圈 150 Retaining ring 150 2 GB/T893.1
10 36211100022 离合器活塞压板 Press plate of clutch piston 2 ZL30E.5.1-8
11 36211100018 离合器被动片 Clutch driven plate 12 ZL30E.5.1-13
12 36211000023 离合器主动片 Clutch drive plate 12 ZL30E.5.1-12
13 51454410107 挡圈 52 Retainer ring 52 2 GB/T894.2
14 36211100013 压板 Press plate 2 ZL30E.5.1-3
15 36211100019 回位弹簧 Pull-off spring 2 ZL30E.5.1-4
16 36211000003 活塞装置 Piston device 2 ZL30E.5.1.1
17 36212000006 二轴离合器毂体 Second axle clutch hub 1 ZL30E.5.3.1
18 60201100330 丝堵（1/8） Plug 2 ZL30E.5.1-9
19 36211100021 密封环 Seal ring 3 ZL30E.5.1-7
20 36211100016 调整垫圈 Adjusting washer 1 组 ZL30E.5.1-10
21 36212100044 二轴一挡齿轮 Second axle first gear 1 ZL30E.5.3-6
22 36212100045 轴套 Shaft sleeve 1 ZL30E.5.3-7
23 36212100046 二轴倒挡齿轮 Second axle reverse gear 1 ZL30E.5.3-8
1 52322000701 轴承 30308 Bearing 30308 1 GB/T297
2 36213100022 轴套 Shaft sleeve 1 ZL30E.5.4-2
3 36213100021 三轴三挡齿轮 Third axle third gear 1 ZL30E.5.4-1B
4 36213100025 轴套 Shaft sleeve 1 ZL30E.5.4-5
5 52198021201 轴承 6209 Bearing 6209 2 GB/T276
6 36212100042 轴套 Shaft sleeve 1 ZL30E.5.3-4
7 51451560107 挡圈 85 Retaining ring 85 2 GB/T893.1
8 51454410107 挡圈 52 Retainer ring 52 1 GB/T894.2
9 36211100013 压板 Press plate 1 ZL30E.5.1-3
10 36213100023 三轴二挡齿轮 Third axle second gear 1 ZL30E.5.4-3
11 51451750107 挡圈 150 Retaining ring 150 1 GB/T893.1
12 36211100022 离合器活塞压板 Press plate of clutch piston 1 ZL30E.5.1-8
13 36211100018 离合器被动片 Clutch driven plate 6 ZL30E.5.1-13
14 36211000023 离合器主动片 Clutch drive plate 6 ZL30E.5.1-12
15 36211000003 活塞装置 Piston device 1 ZL30E.5.1.1
16 36211100019 回位弹簧 Pull-off spring 1 ZL30E.5.1-4
17 36213000007 三轴离合器毂体 Third axle clutch hub 1 ZL30E.5.4.1
18 36213100024 三轴输出齿轮 Third axle output gear 1 ZL30E.5.4-4A
19 36213100026 轴套 Shaft sleeve 1 ZL30E.5.4-6
20 52322000801 轴承 30309 Bearing 30309 1 GB/T297
21 36211100021 密封环 Seal ring 2 ZL30E.5.1-7
22 60201100330 丝堵（1/8） Plug 1 ZL30E.5.1-9
23 36213100027 调整垫片 Adjusting shim 1 组 ZL30E.5.4-7
1 51204091214 螺栓 M8×30 Bolt M8×30 8.8 6 GB/T5783
2 51401090107 垫圈 8 Washer 8 6 GB/T93
3 36218100036 法兰盘 Flange 1 ZL30E.5.7-8
4 36313100000 磁铁 Magnet 1 LG853.03.01-024
5 36201100026 密封垫 Seal gasket 2 LG853.03.01-026
6 51451500107 挡圈 70 Retaining ring 70 1 GB/T893.1
7 36218000001 滤芯总成 Filter cartridge assembly 1 LG853.03.01.16
1 36211100007 油道隔环 Oil duct insulation ring 2 ZL30E.5.1.1-2
2 52900000101 钢球 5 Steel ball 5 2 GB308-84
3 36211100008 外密封圈 Outer sealing ring 1 ZL30E.5.1.1-4A
4 36211100006 活塞 Piston 1 ZL30E.5.1.1-1
5 36211100000 内密封圈 Inner sealing ring 1 ZL30E.5.1.1-3A
1 36211000005 一轴润滑油管 First axle lubricating oil tube 1 ZL30E.5.18A
2 36223000006 倒挡润滑油管 Reverse gear lubricating oil tube 1 ZL30E.5.16A
3 36223000001 前进挡油管 Forward gear oil tube 1 ZL30E.5.11A
4 56953000101 接头体 A8/R1/4 Connector A8/R1/4 2 GB/T5626
5 36201000006S 三轴端盖总成 Third axle end cover assembly 1 ZL30E.5.5AS
6 36201100100 倒挡齿轮轴 Reverse gear axle 1 ZL30E.5-6
7 36201100094 密封垫 Seal gasket 1 ZL30E.5-26A
8 60201100495 密封垫 Seal gasket 1 ZL30E.5-10
9 36201000008S 二轴端盖总成 Second axle end cover assembly 1 ZL30E.5.9AS
10 36218100020 一轴端盖 First axle end cover 1 ZL30E.5.2-1
11 36201100101 密封垫 Seal gasket 2 ZL30E.5-8
12 60980000008 检油塞 Z1/4" Oil check plug 2 13050-010
13 36201100085 箱体 Transmission housing 1 ZL30E.5G-1
14 36201100096 密封垫 Seal gasket 1 ZL30E.5-3
15 36201000005S 三轴离合器总成 Third axle clutch assembly 1 ZL30E.5.4S
16 36201000004S 二轴离合器总成 Second axle clutch assembly 1 ZL30E.5.3S
17 36201000001S 一轴离合器总成 First axle clutch assembly 1 ZL30E.5.1S
18 56145011701 O 形圈 45×2.65 O-ring 45×2.65 1 GB/T3452.1
19 36201100084 轴套 Shaft sleeve 1 ZL30E.5-7
20 51204101214 螺栓 M10×30 Bolt M10×30 8.8 43 GB/T5783
21 36201100099 倒挡齿轮 Reverse gear 1 ZL30E.5-4
22 36201000007 支架 Bracket 2 ZL30E.5.6B
23 36201100085 箱体 Transmission housing 1 ZL30E.5G-1
24 60400000912 控制阀 Control valve 1 ZL30E.5.8B
25 51142250108 螺钉 M16 Screw M16 1 GB/T825
26 51203112614 螺栓 M12×100 Bolt M12×100 8.8 6 GB/T5782
27 56139000202 油封 55×80×12 Oil seal 1 HG4-339-66
28 36224000001 透气阀总成 Vent trap 1 LG853.03.01.12
29 36201100078S 油封盖 Oil seal cover 1 ZL30E.5-28S
30 51401100107 垫圈 10 Washer 10 47 GB/T93
31 36201100095 输入法兰 Input flange 1 ZL30E.5-27
32 36201100097 橡胶垫 Rubber pad 1 ZL30E.5-30
33 36201100077 垫圈 Washer 1 ZL30E.5-25
34 60201100447 螺母 M24×1.5 Nut M24×1.5 1 JB980-80
35 36201100071S 端盖 End cover 2 ZL30E.5-17AS
36 36201100098 密封垫 Seal gasket 3 ZL30E.5-32
37 36201100079 调整垫圈 Adjusting washer 3 组 ZL30E.5-29
38 36201100093 后输出法兰 Rear input flange 1 ZL30E.5-24
39 51204111314 螺栓 M12×35 Bolt M12×35 8.8 29 GB/T5783
40 51401110107 垫圈 12 Washer 12 35 GB/T93
41 36201100076 后轴承端盖 Rear axle end cover 1 ZL30E.5-23
42 36201100091 密封垫 Seal gasket 2 ZL30E.5-15
43 36201100069 调整垫圈 Adjusting washer 1 组 ZL30E.5-13
44 56139000102 油封 60×85×12 Oil seal 60×85×12 1 HG4-339-66
45 36218000005 回油控制阀 Oil return control valve 1 ZL30E.5G.21
46 36218000004 滤清器总成 Filter assembly 1 ZL30E.5.7
47 52198025601 轴承 6312 Bearing 6312 2 GB/T276
48 51203131414 螺栓 M16×40 Bolt M16×40 8.8 8 GB/T5782
49 51401130107 垫圈 16 Washer 16 8 GB/T93
50 36100100011 螺塞 ZG3/4" Plug screw ZG3/4" 1 LG853.02.01-011
51 56147010101 组合垫圈 10 Bonded washer 10 8 JB/T982
52 36201100082 接头体 Adapter 8 ZL30E.5-33
53 36221000004 加油管总成 Oil fill tube assembly 1 ZL30E.5.13
54 36201100083 轴套 Shaft sleeve 1 ZL30E.5-5
55 51453350107 挡圈 40 Retainer ring 40 1 GB/T894.1
56 51513131703 圆柱销 10×30 Cylindrical pin 10×30 2 GB/T119.1
57 52198025201 轴承 6308 Bearing 6308 1 GB/T276
58 51451580107 挡圈 90 Retaining ring 90 2 GB/T893.1
59 36201100092 输出轴 Output shaft 1 ZL30E.5-20A
60 36201100090 输出被动齿轮 Output driven gear 1 ZL30E.5-14A
61 36201100073 轴套 Shaft sleeve 1 ZL30E.5-19
62 36201100068 轴套 Shaft sleeve 1 ZL30E.5-12
63 56139000401 油封 65×90×12 Seal ring 65×90×12 2 HG4-339-66
64 51421110119 垫圈 12 Washer 12 1 GB/T97.1
65 36201100074 制动立支座 Brake bracket 1 ZL30E.5-21
66 36201100070 前轴承盖 Front bearing cover 1 ZL30E.5-16
67 60208000005 制动器 Brake 1 ZL1615.2A
68 36206000004 前输出法兰总成 Front output flange assembly 1 ZL30E.5B.17
69 36201100081 垫片 Shim 1 ZL30E.5-31
70 56145011301 O 形圈 42.5×5.3 O-ring 42.5×5.3 1 GB/T3452.1
71 36201100067 压板 Press plate 2 ZL30E.5-11
72 51373011001 螺母 M33×1.5 Bolt M33×1.5 2 GB/T890
73 36223000005 一挡油管 First gear oil tube 1 ZL30E.5.15A
74 36204000003 三档油管 Third gear oil tube 1 ZL30E.5.22A
75 36223000002 倒退挡油管 Reverse gear oil tube 1 ZL30E.5.12A
76 36223000003 二挡油管 Second gear oil tube 1 ZL30E.5.14A
77 56953000201 接头体 A10/R1/4 Connector A10/R1/4 3 GB/T5626
78 36201100072 接头 Connector 1 ZL30E.5-18
79 36213000006 三轴润滑油管 Third axle lubricating oil tube 1 ZL30E.5.19A
https://www.meppon.com/product/lonking-cdm833-cdm835-transmission-assy/
No comments:
Post a Comment
