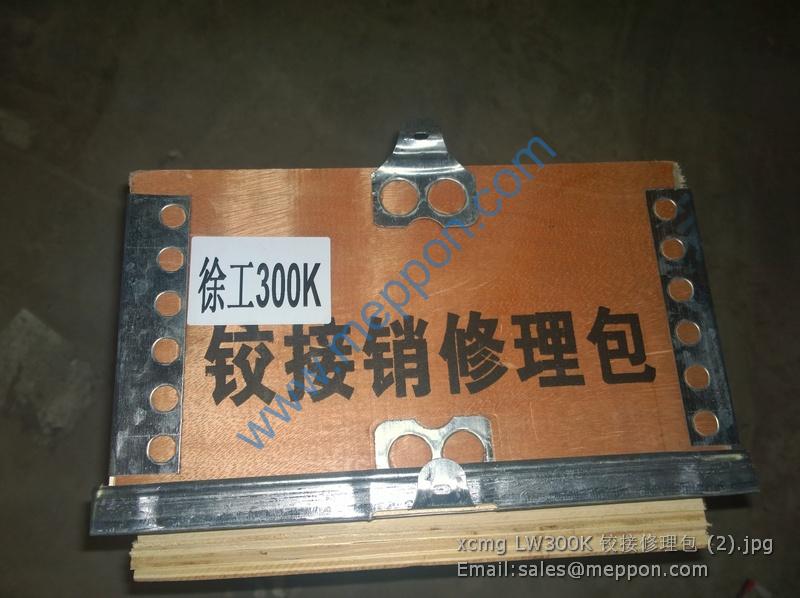

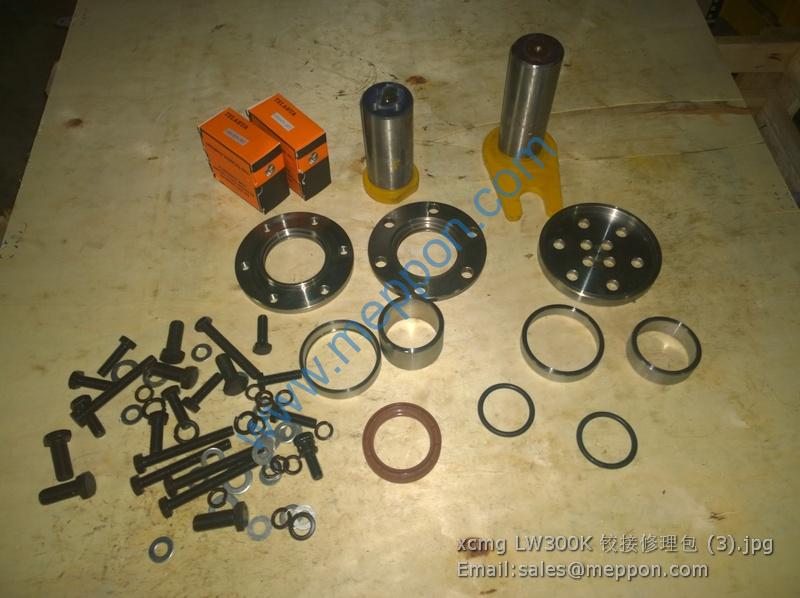

xcmg LW300K joint pin kits LW300KN LW300KV
9358294 前车架 Front Chassis 1
9358290 前车架动臂销 Pin 2
4403009 垫圈 16 Washer 6 GB96-85
4401011 垫圈 16 Lock Washer 6 GB93-87
4005095 螺栓 M16×25 Bolt 6 GB5783-86
9359143 上铰接销 Upper Articulation Pin 1
4806970 密封圈 B60×80×8 Seal Ring 2 GB9877.1-88
9364818 钢套 Bushing 2
4710016 关节轴承 GE60ES Knuckle Bearing 2 GB304.5-81
9358288 前车架动臂油缸销 Pin 2
4004044 螺栓 M12×65 Bolt 6 GB5782-86
4401009 垫圈 12 Lock Washer 16 GB93-87
9359610 钢套 Bushing 1
4827134 O 型圈 73×5.3G O-Ring 2 GB3452.1-92
9359611 上法兰 Upper Flange 1
9305943 调整垫片 Adjusting Shim 1
9359612 下法兰 Lower Flange 1
9358287 钢套 Bushing 1
9358267 下铰接销 Lower Articulation Pin 1
9359614 调整垫片 Adjusting Shim 1
9359613 压板 Plate 1
4005067 螺栓 M12×30 Bolt 10 GB5783-86
4005052 螺栓 M10×20 Bolt 6 GB5783-86
4401008 垫圈 10 Lock Washer 6 GB93-87
9301209 垫圈 Washer 2
9327907 转向销 Steering Pin 2
9357442 垫片 Shim 2
9357443 垫片 Shim 2
9358292 前车架翻斗油缸销 Pin 1
4404009 垫圈 10 Washer 4 GB97.1-85
9364811 前面板 Front Cover 1
9358955 后车架 Rear Chassis 1
4005052 螺栓 M10×20 Bolt 4 GB5783-86
4401008 垫圈 10 Lock Washer 4 GB93-87
9301209 垫圈 Washer 4
9327907 转向销 Steering Pin 2
9357442 垫片 Shim 2
9357443 垫片 Shim 2
4906002 油杯 45°M10×1 Grease Cup 2 JB/T7940.2-1995
4506679 销轴 B32×70 Pin 2 GB882-86
9356545 车架锁定杆 Lock Link 1
9351422 弹性挡簧 Spring 2
9364814 右侧挡板 Right Fender 1
4404008 垫圈 8 Washer 9 GB97.1-85
4401007 垫圈 8 Lock Washer 9 GB93-87
4005039 螺栓 M8×16 Bolt 9 GB5783-86
9358957 付车架 Auxiliary Chassis 1
9351708 调整垫片 Adjusting Shim 4
9301201 套 Bushing 2
9300608 铜垫 Washer 2
4905002 油杯 M10×1 Grease Cup 2 JB/T7940.1-1995
4608003 接头体 6 Joint 4 GB5631.2-85
9358958 后销黄油管 Tube 1
4341003 锁紧螺母 6 Nut 4 GB5649-85
4808002 垫圈 10 Shim 4 JB982-77
9301317 副车架销 Pin for Auxiliary Chassis 2
9358956 前销黄油管 Tube 1
9358959 配重总成 Counterweight 1
9348649 牵引销 Drawing Pin 1
4004124 螺栓 M24×180 Bolt 4 GB5782-86
4401015 垫圈 24 Lock Washer 4 GB93-87
4404014 垫圈 24 Washer 4 GB97.1-85
252605917 前车架 Front chassis
252604960 前车架动臂销 PIN
805300111 垫圈 16 Washer
805300011 垫圈 16 Washer
805000022 螺栓M16X25 Bolt
252600511 上铰接销 UPPER ARTICULATION PIN
803164079 密封圈B60×80×8 SEAL RING
252600717 钢套 BUSHING
800511234 关节轴承 GE60ES Oscillating Bearing
252604959 前车架动臂油缸销 PIN
805000681 螺栓M12X65 Bolt
805300018 垫圈12 washer 12
252600572 钢套 BUSHING
803164133 O型圈73×5.3G O-RING
252600573 上法兰 UPPER FLANGE
250100424 调整垫片 ADJUSTING SHIM
252600574 下法兰 LOWER FLANGE
252600353 钢套 BUSHING
252600335 下铰接销 LOWER ARTICULATION PIN
252600576 调整垫片 ADJUSTING SHIM
252600575 压板 PLATE
805000716 螺栓M12X30 Bolt
805000714 螺栓 M10×20 Blot
805300014 垫圈 10 Washer
250100183 垫圈 WASHER
251900394 转向销 STEERING PIN
251901033 垫片 SHIM
251901034 垫片 SHIM
252604961 前车架翻斗油缸销 PIN
805300017 垫圈10 Washer
252600714 前面板 Front Cover
252606505 后车架 Rear Chassis
805000714 螺栓 M10×20 Blot
805300014 垫圈 10 Washer
250100183 垫圈 WASHER
252606470 转向销 STEERING PIN
251901033 垫片 SHIM
251901034 垫片 SHIM
801100339 油杯 M10×1 801100339
805601624 销轴 B32×70 PIN
252900392 车架锁定杆 LOCK LINK
251500108 弹性挡簧 Washer
252600715 右侧挡板 Right Fender
805300069 垫圈 8 Washer 8
805300010 垫圈 8 Washer
805000033 螺栓M8×16 Bolt
252600382 副车架 AUXILIARY CHASSIS
269900185 调整垫片 Shim
250100180 套 BUSHING
250200178 铜垫 WASHER
801100336 黄油嘴M10X1 Grease Nipple
803163961 接头体6 Pipe Connection
252600383 后销黄油管 TUBE
805200165 锁紧螺母6 Nut
805300037 垫圈10 Washer
250100212 副车架销 AUXILIARY CHASSIS PIN
252600381 前销黄油管 TUBE
252604648 配重总成 Counterweight
250100646 牵引销 Towing pin
805001911 螺栓M24×180 Bolt
805300034 垫圈24 Washer
805300021 垫圈24 Washer
