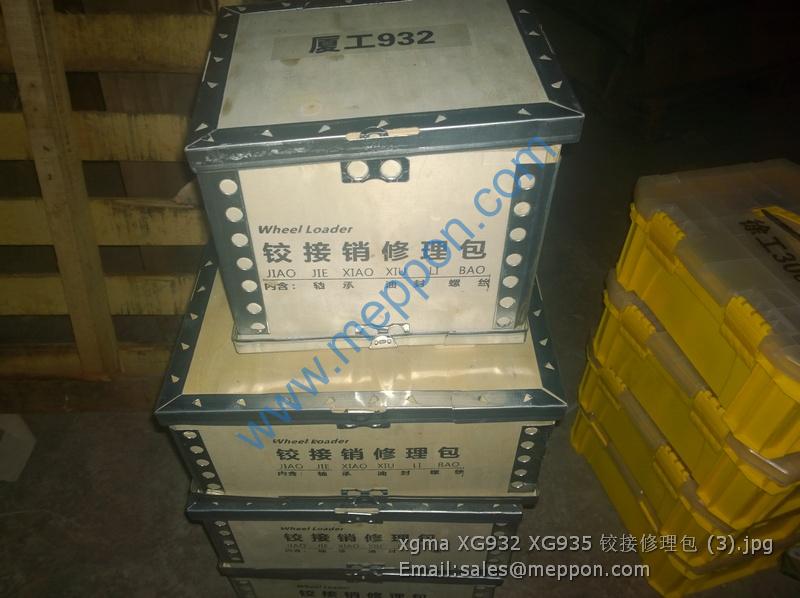

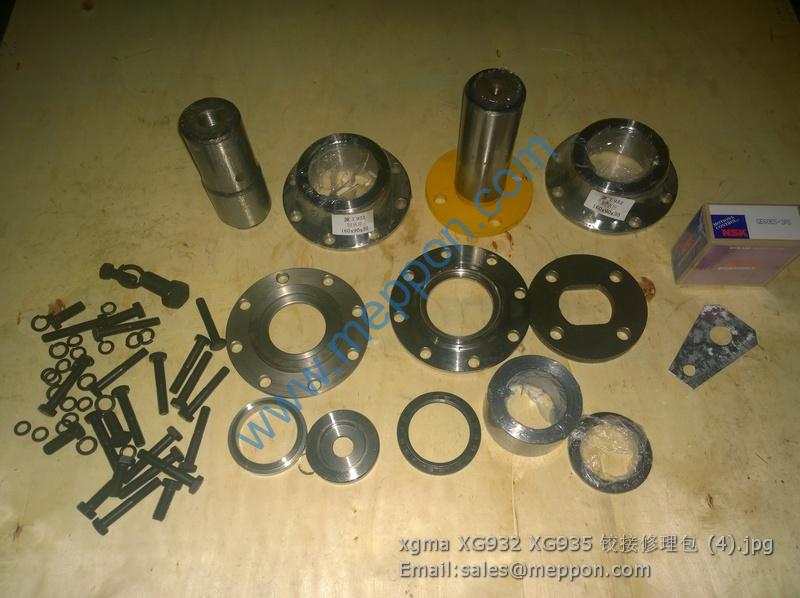

xgma XG932 XG935 JOINT PIN KITS XC932II XG932III XG932H XG935H
30D0406 203B0001 1 后车架 Rear Frame
00B0172 GB5783-86 M10×45 16 螺栓 Bolt
06B0003 GB93-87 10 25 垫圈 Spring
12B0043 1 骨架油封 Seal
58A0136 132C0006 1 法兰 Flange
56A0004 132C0007 2 调整垫 Spacer
54A0151 131E0010 1 轴套 Sleeve
52A0155 132C0004 2 圆座 Round Plate
12B0042 1 骨架油封 Seal
58A0135 132C0005 1 法兰 Flange
35B0017 GB304-88 GE60ES 1 轴承 Bearing
00B0028 GB5783-86 M10×25 2 螺栓 Bolt
26B0010 JB/T7940.1 M10×1 5 油杯 Grease Nipple
15D0099 131D0048 4 销轴 Shaft
66A0013 131J0084 1 销 Pin
15D0101 131J0085 1 销轴 Pin
08B0044 GB91-86 4×55 1 销 Slit Pin
12D0024 1 拉杆 Link
57A0003 410248A 1 卡簧 Spring
00B0083 GB5783-86 M16×40 7 螺栓 Bolt
06B0028 GB96-85 16 7 垫圈 Washer
54A0091 4 钢套 Sleeve
15D0624 2 销轴 Shaft
54A0148 201E0050 2 轴套 Sleeve
00D0270 201E0052 1 支架 Bracket
01B0028 GB5785-86 M24×2×70 2 螺栓 Bolt
52A0163 202H0010 2 圆盘 Round Plate
52A0162 202H0009 2 圆盘 Round Plate
01B0021 GB5785-86 M36×2×240 4 螺栓 Bolt
28C0171 1 配重 Counter Weight
03B0018 GB6171-86 M36×2 8 螺母 Nut
30D0405 132C0010 1 前车架 Front Frame
15D0100 132C0300 2 销轴 Shaft
54A0160 3 隔离套 Sleeve
00B0031 GB5783-86 M12×30 8 螺栓 Bolt
06B0013 GB93-87 12 8 垫圈 Washer
15D0098 132C0400 1 销轴 Shaft
00B0029 GB5783-86 M10×20 3 螺栓 Bolt
56A0503 1 调整垫 Washer
52A0166 132C0002 1 圆盘 Round Plate
60A0093 132C0003 1 销轴 Shaft
17B0037 131E0012 1 橡胶圈 Seal
54A0147 131E0008 1 轴套 Sleeve
52A0165 131E0006 1 圆盘 Round Plate
10A0157 131E0007 1 板 Plate
06B0001 GB93-87 1 垫圈 Washer
00B0001 GB5783-86 M20×40 1 螺栓 Bolt
10A0160 132C0001 1 板 Plate
06B0009 GB93-87 8 6 垫圈 Spring
00B0038 GB5783-86 M8×16 6 螺栓 Bolt
15D0097 132C0200 1 销轴 Shaft
